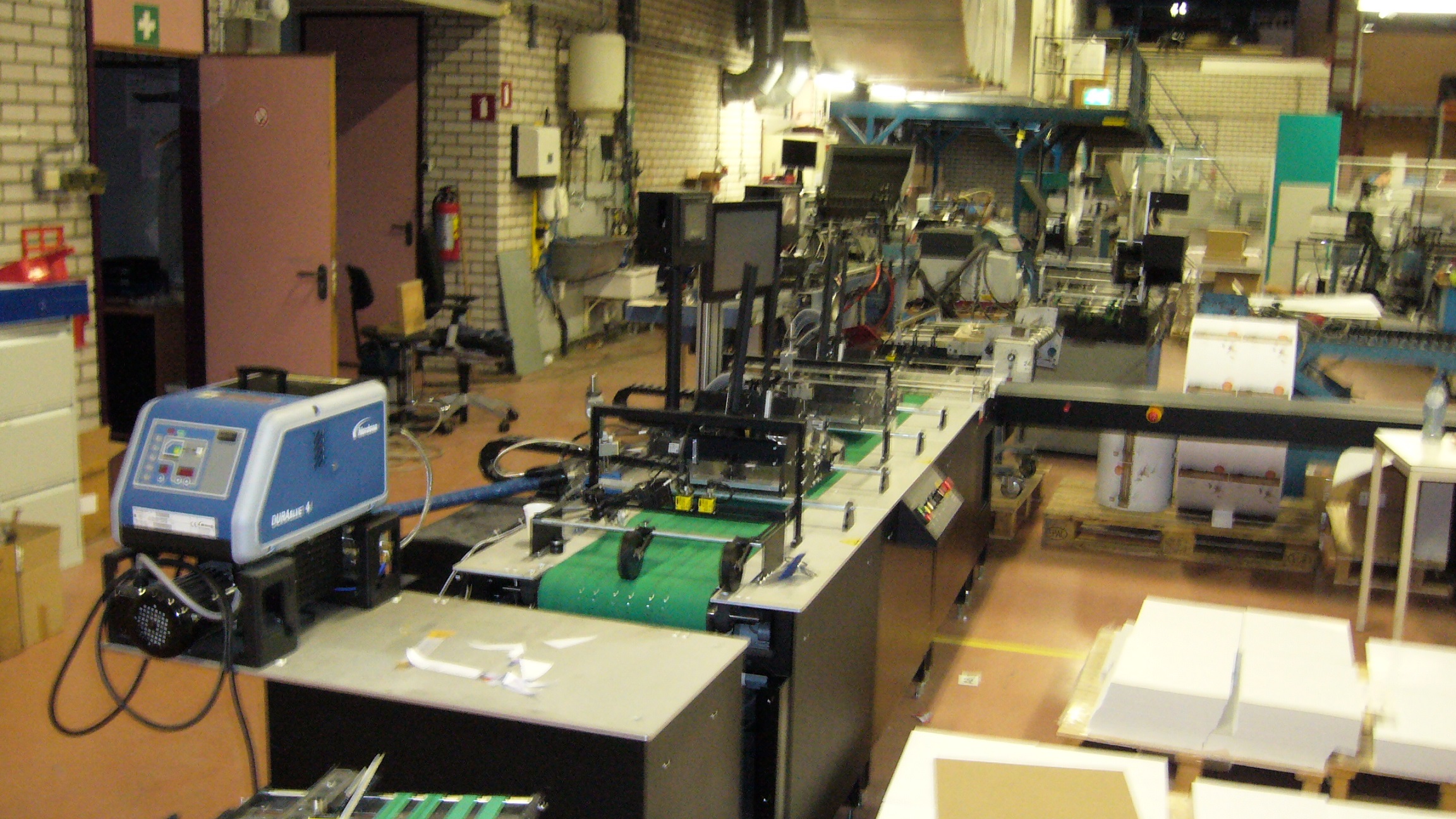

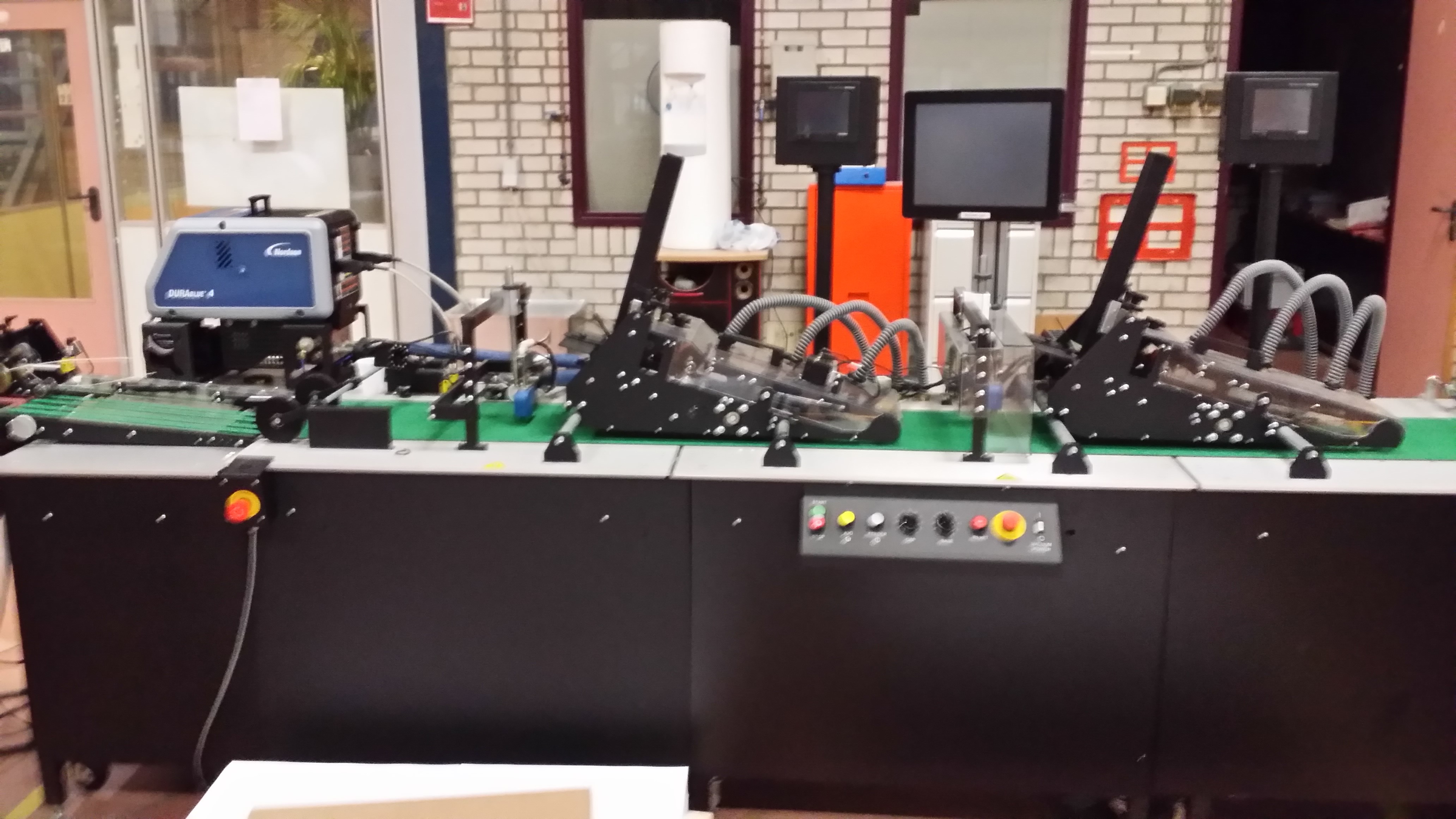

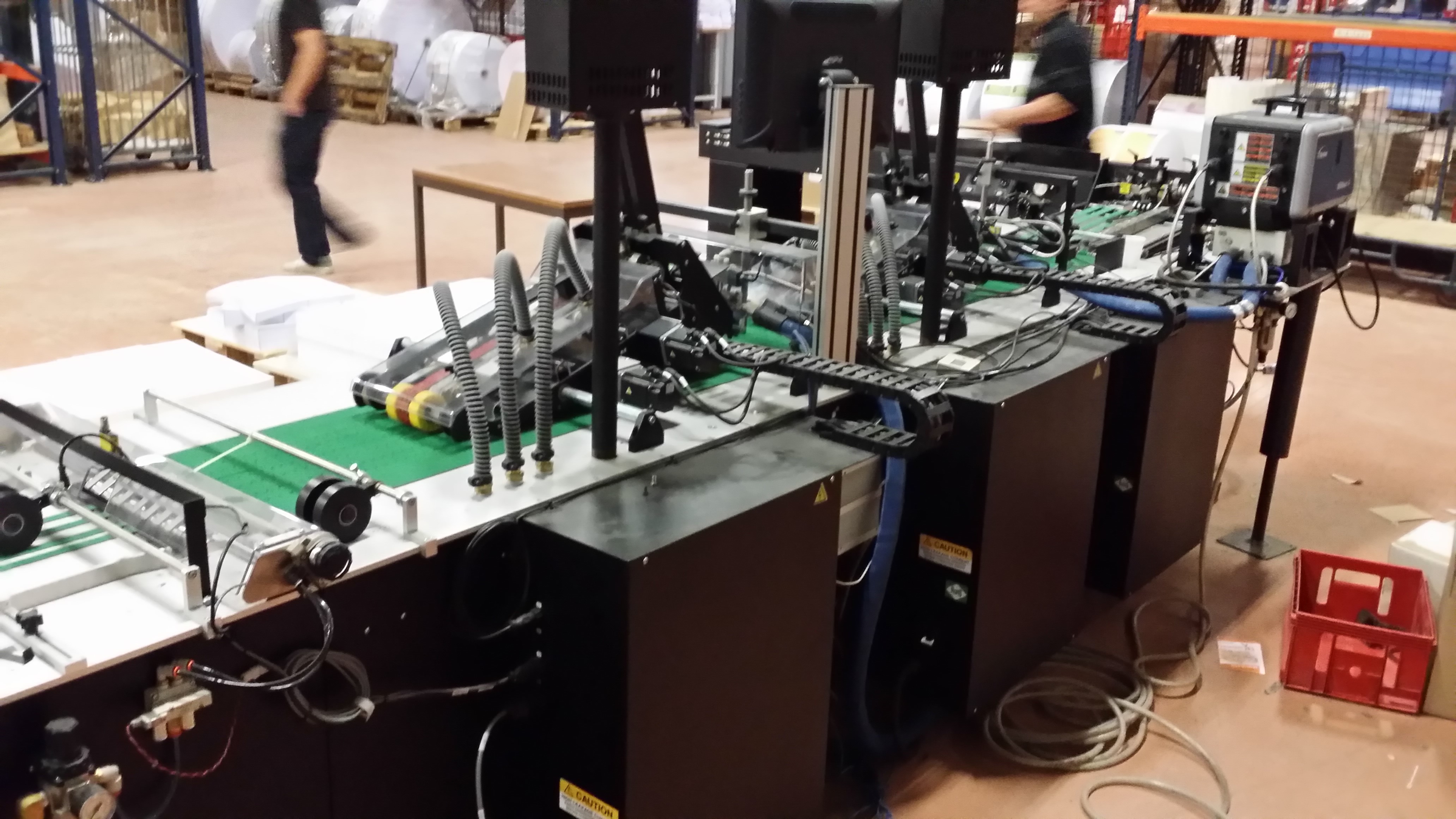

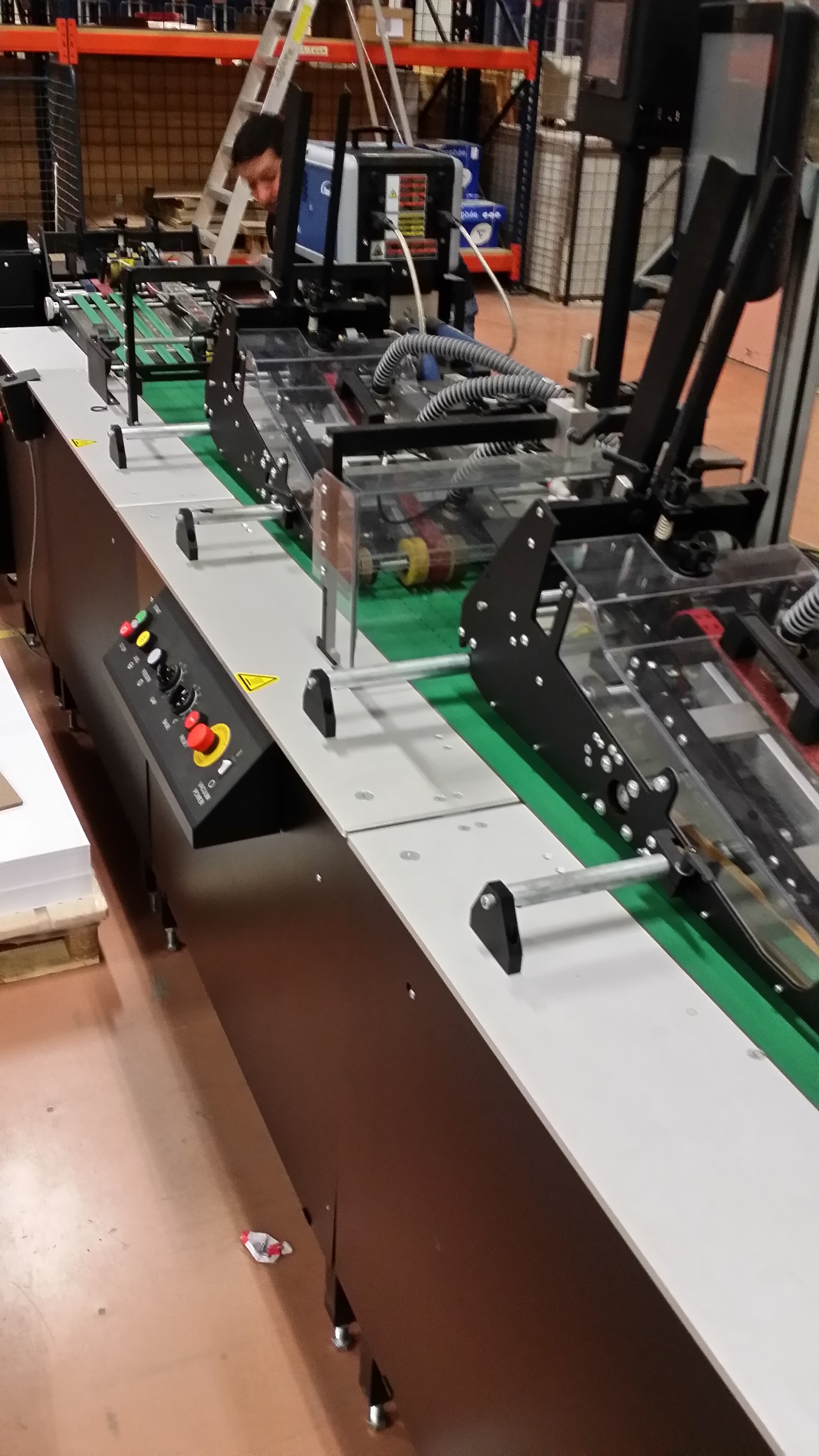

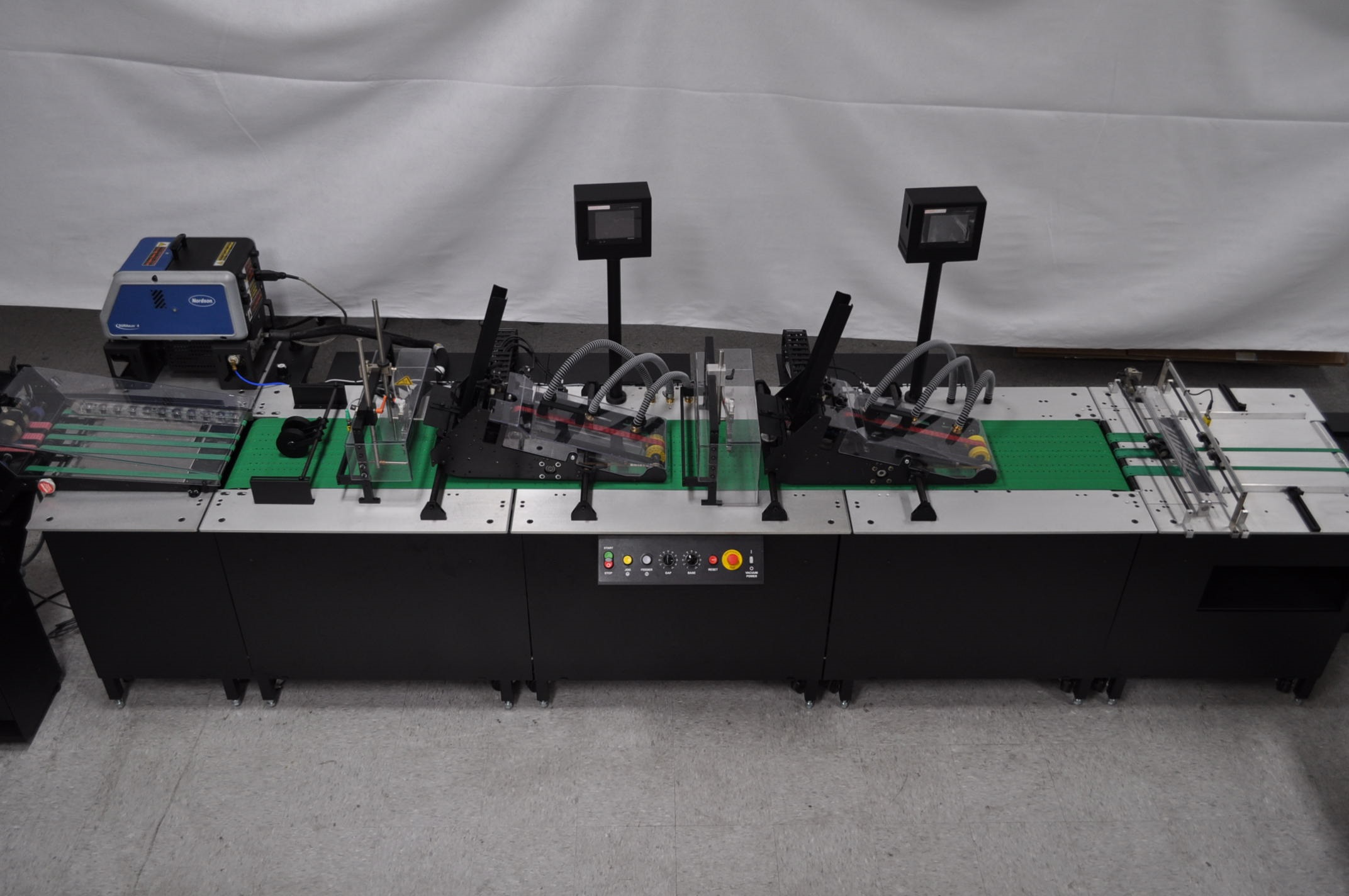

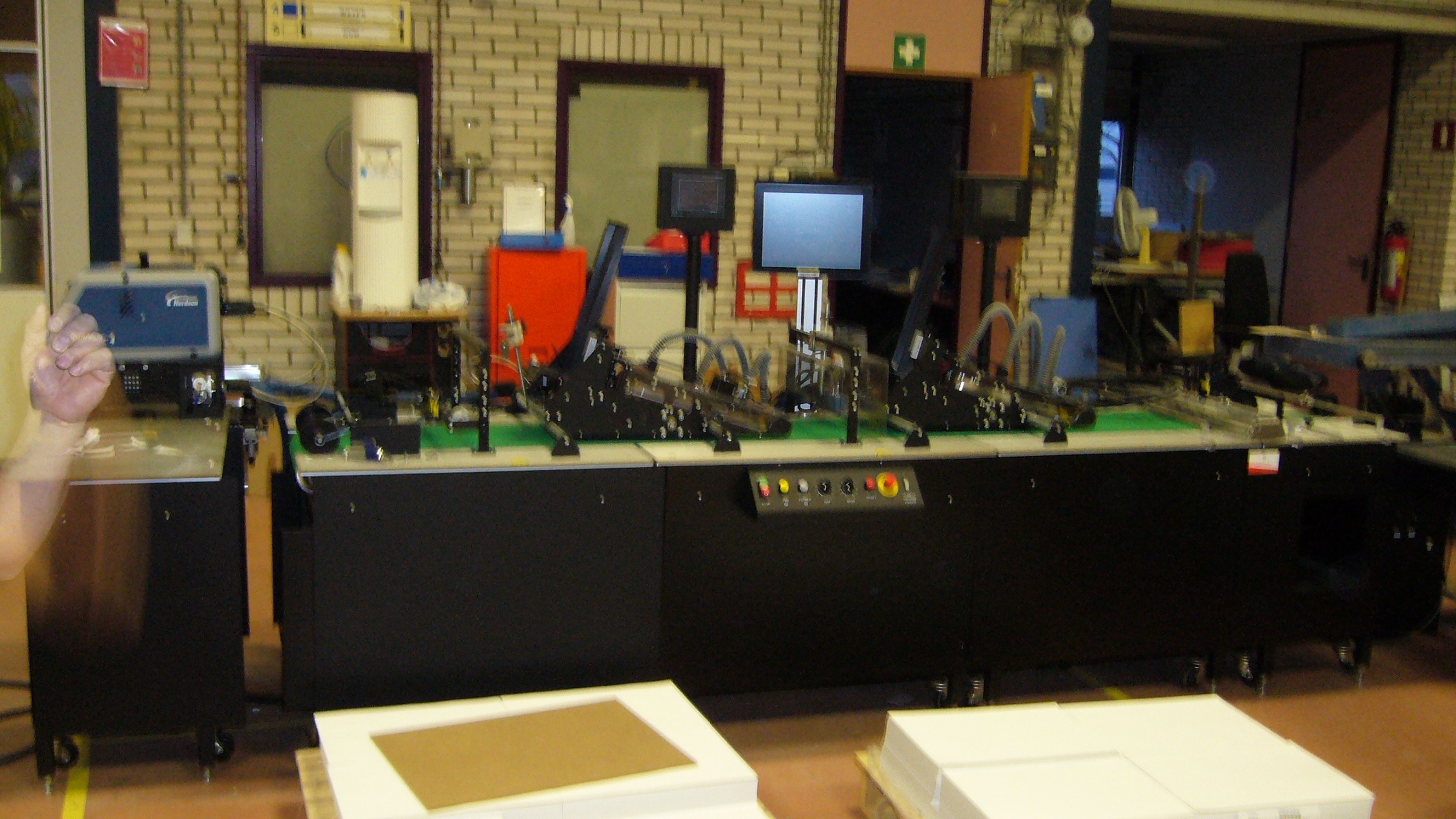

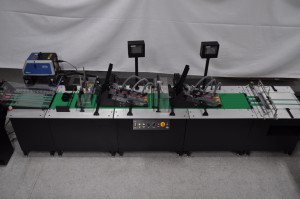

APAS 112 Card Attaching System from 2/2013
Used very little!
- FeedMax-S, 15″ wide carier feeder with 10cm long autoloadeer
- 285 cm Long Base with 3 vacuum channels
- Two Servo Driven Onverhead Card Feeders
- Camera system system for Matching Card and Carrier
- Diverter for false products
- 2 meter Collection Conveyor
- Adjust on the Fly
- Nordson Glue System Included
Maximum Carrier Size: 30 cm W x 35 cm L
Minimum Carier Size: 8.9 cm W x 10 cm L
Maximum Card Size: 8.3 cm W x 15 cm L
Minimum Card Size: 5.4 cm W x 5.4 cm L+
Paper & Card Feeder Capacity: 46 cm (Hopper)
Tolerance Range: 3 mm
Electrical: 240 VAC, 30 AMP, 1 Phase
Speed: 20.000 + pieces per hour (Product Dependent)
Warranty: 90 days electrical, 1 year parts (less consumables)
Included:

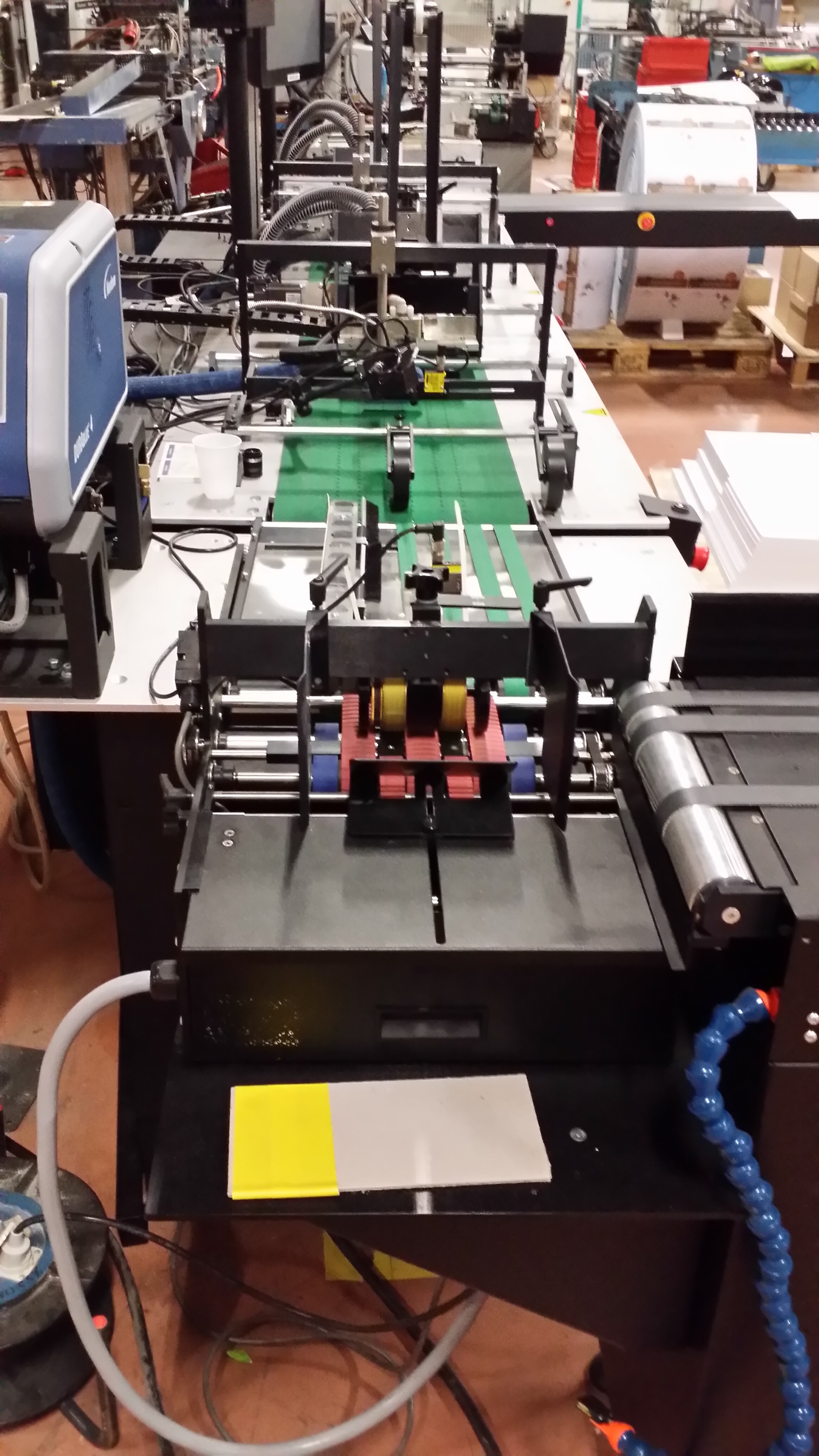

Force Flex
– 15″ wide friction feeder
– Dynamic Rotation Technology
– The “Shaker” for accurate Feeding
– 180 cm long autoloader
Vacuum Transfer Base
– PLC Touch Screen Control
– Vacuum Belt with 3 channels
– Variable Speed

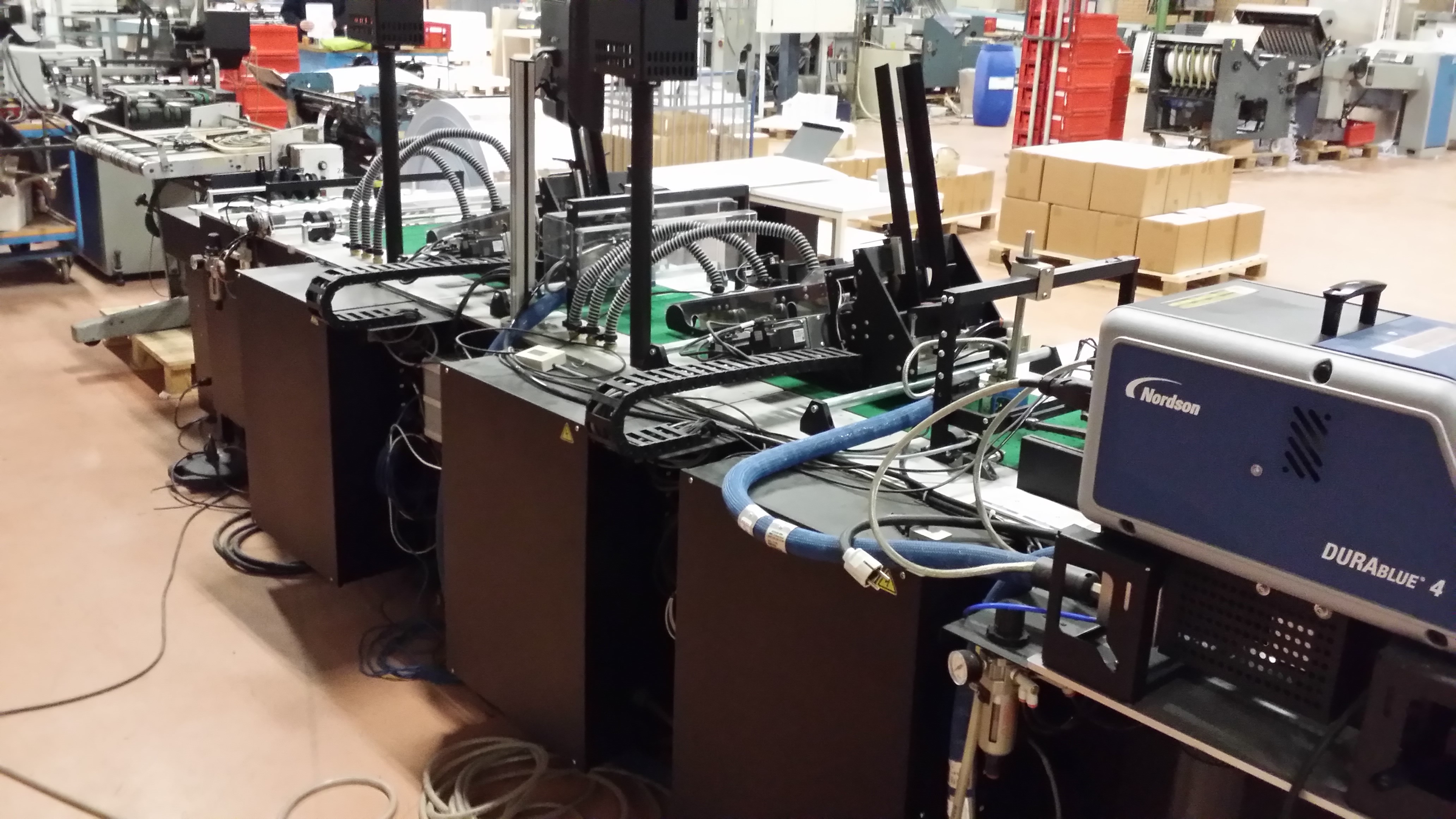

Nordson Glue System
– Durable 4 Tank
(4.5 Kg. capacity)
– Heated Hose
– Pneumatic Glue Gun
– Daily Timer & Standby System
– Fully Integrated

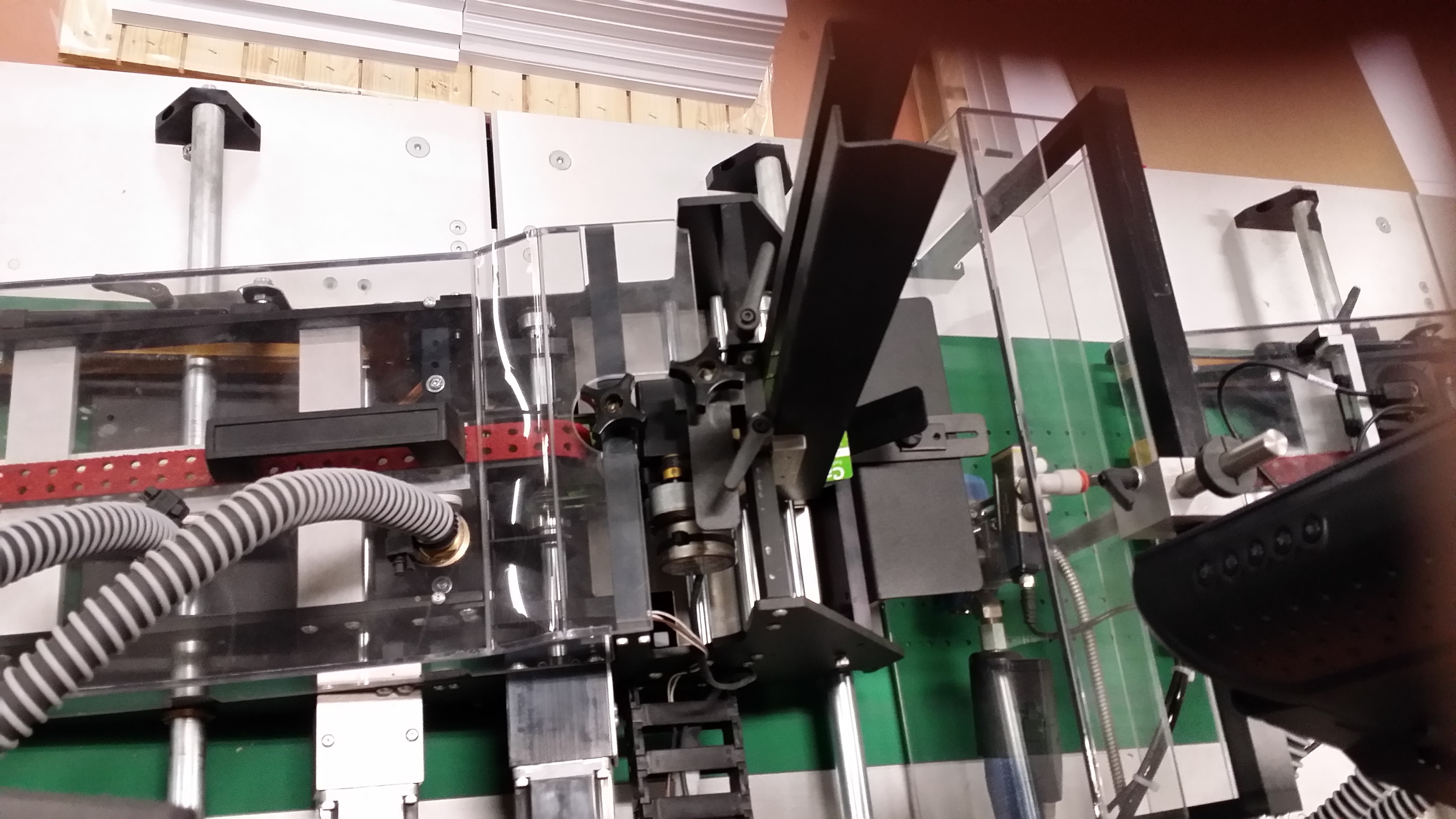

Synchronized card feeder
– Overhead Vacuum Transport
– Servo driven
– 46 cm magazine
– Adjustable while running
– Double, miss & jam detection
– One or two card applications

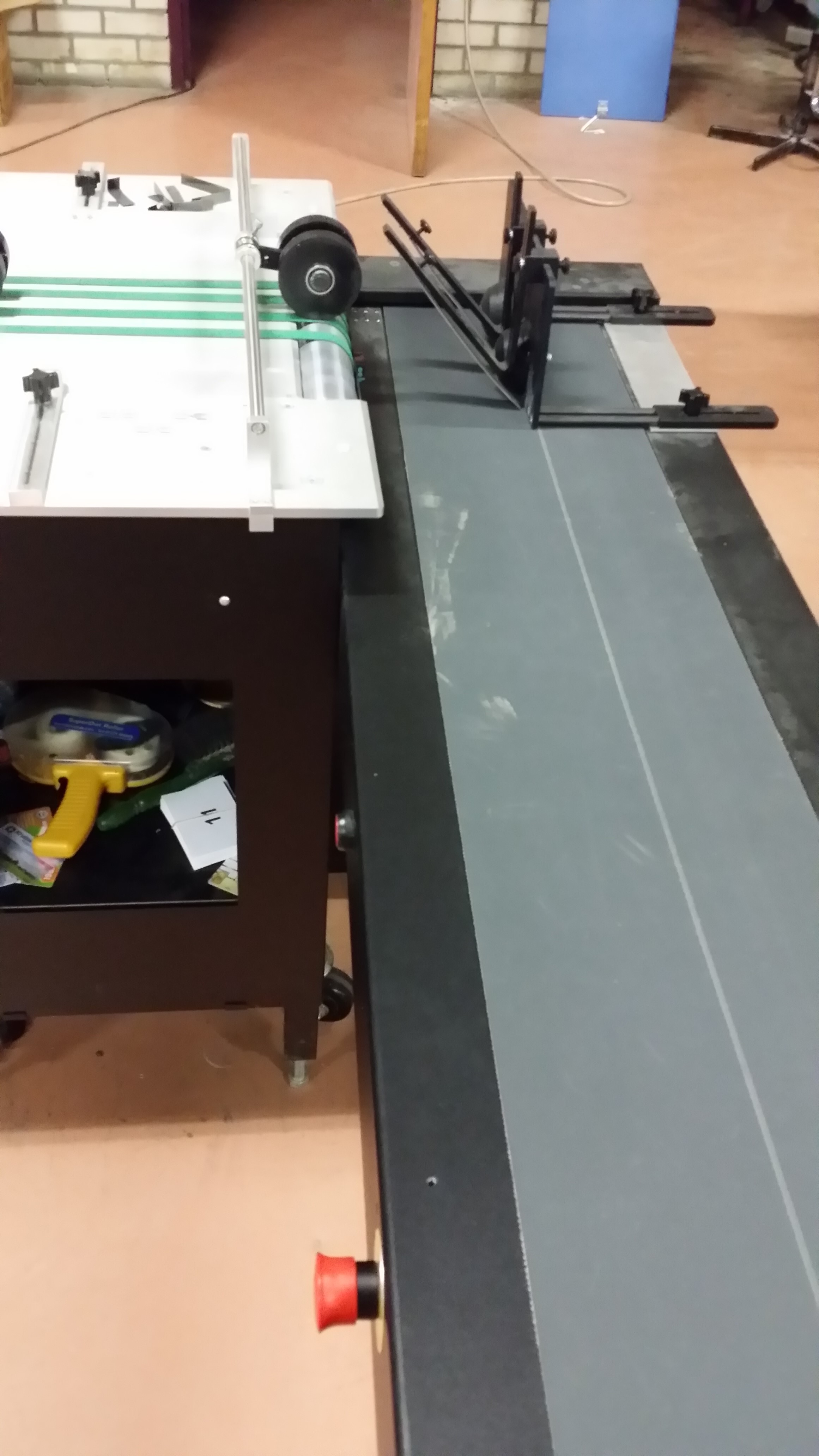

180 cm Collection conveyor
– 90 degree or in-line
– 25cm wide belt
– Variable speed
– Up-gradable to 270 cm Collection or 270cm Sorting Conveyor
Speed: Maximum 25.000 products per hour (product depending)
